8 fully-assignable XLR outputs plus a headphone output

Industry-leading Master Fader control app

16x16 USB recording

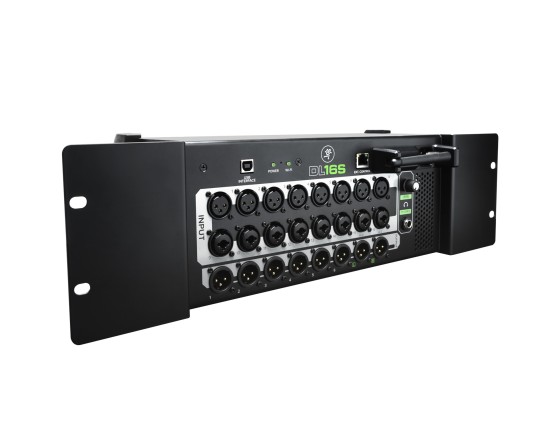

Ditch the snake – Place it anywhere on stage or in a rack

-WIRELESS MIXING

Complete control via iOS, Android™, macOS®, or Windows® devices

No set FOH position – mix from anywhere

Supports up to 20 separate devices at once

Multiple engineers can work from a single mixer

-POWERFUL PROCESSING AND SIGNAL PROCESSING

16 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph

16 stereo-linkable input channels

13 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph

6 stereo-linkable aux sends

6 stereo-linkable subgroups

Main L/R bus

6 VCAs and 6 mute groups

4 stereo FX processors featuring great built-in FX like reverbs, delays, choruses, flangers, and many more with dedicated sends and returns

Full I/O routing with A/B sources per channel

Assignable oscillator including pink/white noise and sine waves

Modern and Vintage options for comp/gate and EQ

-MULTI-TRACK RECORDING & PLAYBACK

16x16 USB 2.0 audio interface for Mac or PC

Record the show for later mixdown

Play intermission music, backing tracks and more directly into a dedicated stereo return channel

Perform a virtual sound check

Amazing low-cost, high channel count studio recording solution

Utilize Mac or PC audio plug-ins in a live environment

-MASTER FADER CONTROL APP

Intuitive and easy to master

Fast navigation with view groups and overview

Quick setup with tons of factory and user-definable presets

Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users

Quickly access channel processing, signal routing, and a massive suite of great sounding effects with presets to get you started

Export presets, shows and complete system backups via Dropbox, email and more

Complete offline operation

Available on iOS, Android, macOS, and Windows

-RECORD AND PRODUCE LIKE A PRO

Waveform™ OEM professional software and plugin packages included

The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

DL16S and DL32S are compatible with iOS 11 or later, Android OS 6 or later, macOS 10.12 or later, and Windows 10 or later
